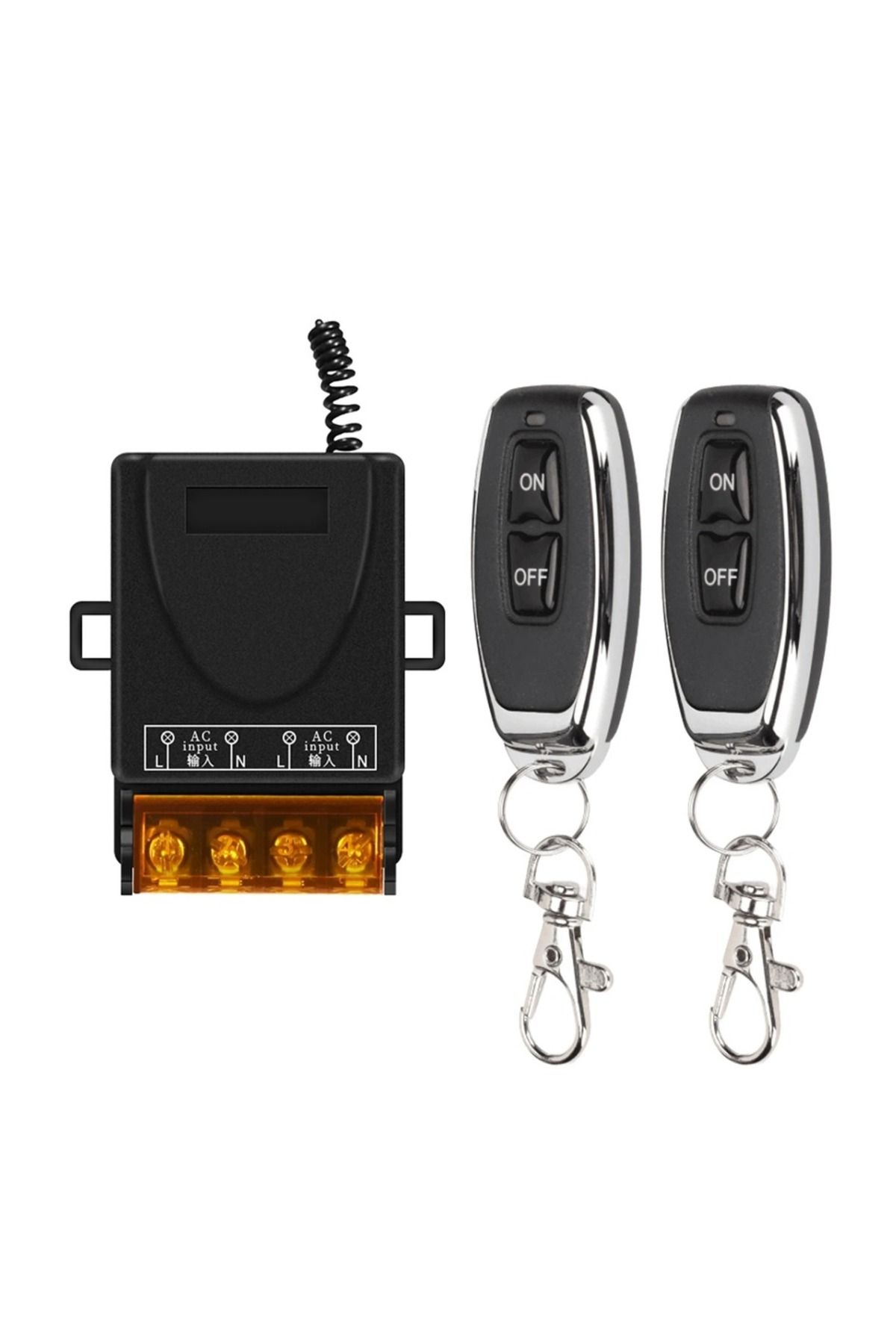

GERMA 433Mhz Wireless Remote Control Switch AC 110V 220V 30A Relay 1CH Receiver Controller and 2botton RF 433 Mhz Transmitter

Specifications Of The Transmitter:

Remote control Transmitter

Operating voltage: DC12V (23A/12V battery x1)

Transmitting frequency: 433MHz

Encoding Type: Fixed code

Receiver sensitivity: > -105dB

Transmission distance : 100M (Open field)

Size: approx 55*28*10mm

Specifications Of The Receiver:

Operating voltage: AC 110V - 240V

Output voltage = Operating voltage

Operating frequency: 433MHz(Same with Remote control)

Encoding Type: learning code

Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

Box size: Approx 65x45x28m

Operation Introduction:

About Working Mode:

Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.

Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.

Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.

Clearing the Code:

Press the Learning Button on the receivers for 8 times, the codes will be cleaned.

After cleaning the code, all the remote control cannot work any more.

Learning the Code:(Momentary)

Press the learning key on the receiver once time, it comes into momentary setting mode.

Wait for a moment, the LED will be off , it comes into learning state.

Push the remote button, LED indicator on the receiver board will flash then come off.

After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)

Press the learning key on the receiver twice time, it comes into toggle setting mode.

Wait for a moment, the LED will be off , it comes into learning state.

Press the remote button, LED indicator on the receiver board will flash then come off.

After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code:( Latching)

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.

For example: Button A = ON, Button B = OFF

Press the learning key on the receiver triple time, it comes into latching mode .

Wait for a moment, the LED indicator on the receiver board will flash then come off.

Press the remote button A. LED flash for 5 times.

Press the remote button B. LED flash for 5 times

After 3 seconds, the LED indicator will be on again, learning successfully.

A = ON, B = OFF.

About Delay:

1. Learning method with a 5-second delay:

Press the controller learning button four times, the indicator light flashes four times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, the relay will automatically disconnect after 5 seconds of closing.

2. Learning method with a 10-second delay:

Press the controller learning button five times, the indicator light flashes five times and then press the remote control to send the code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 10 seconds.

3. Learning method with 15 seconds delay:

Press the controller learning button six times, the indicator light flashes six times and then press the remote control to send a code, the receiver indicator flashes three times and then the learning is successful, then press the remote control to send the code, and the relay will automatically disconnect after 15 seconds of closing.
