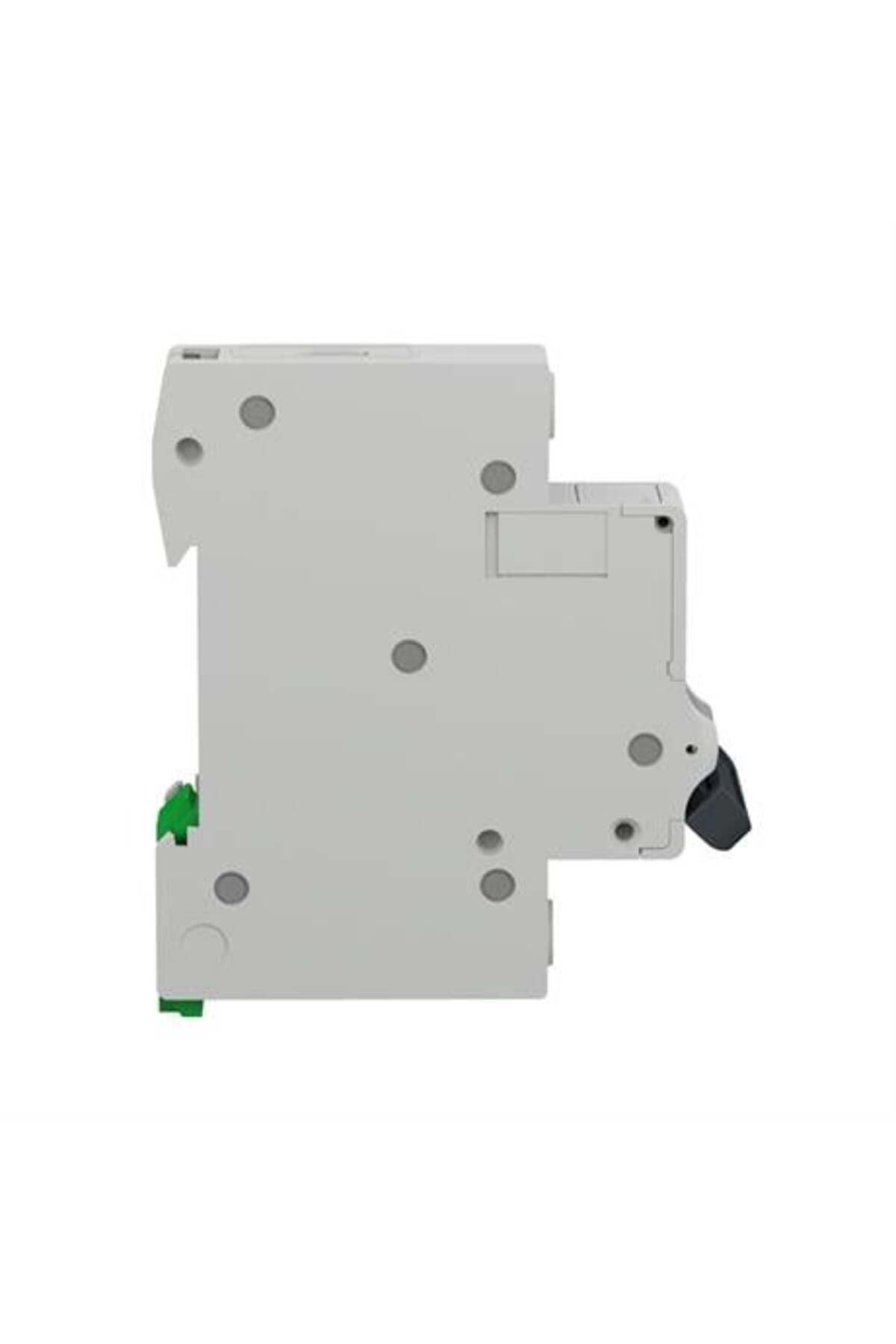

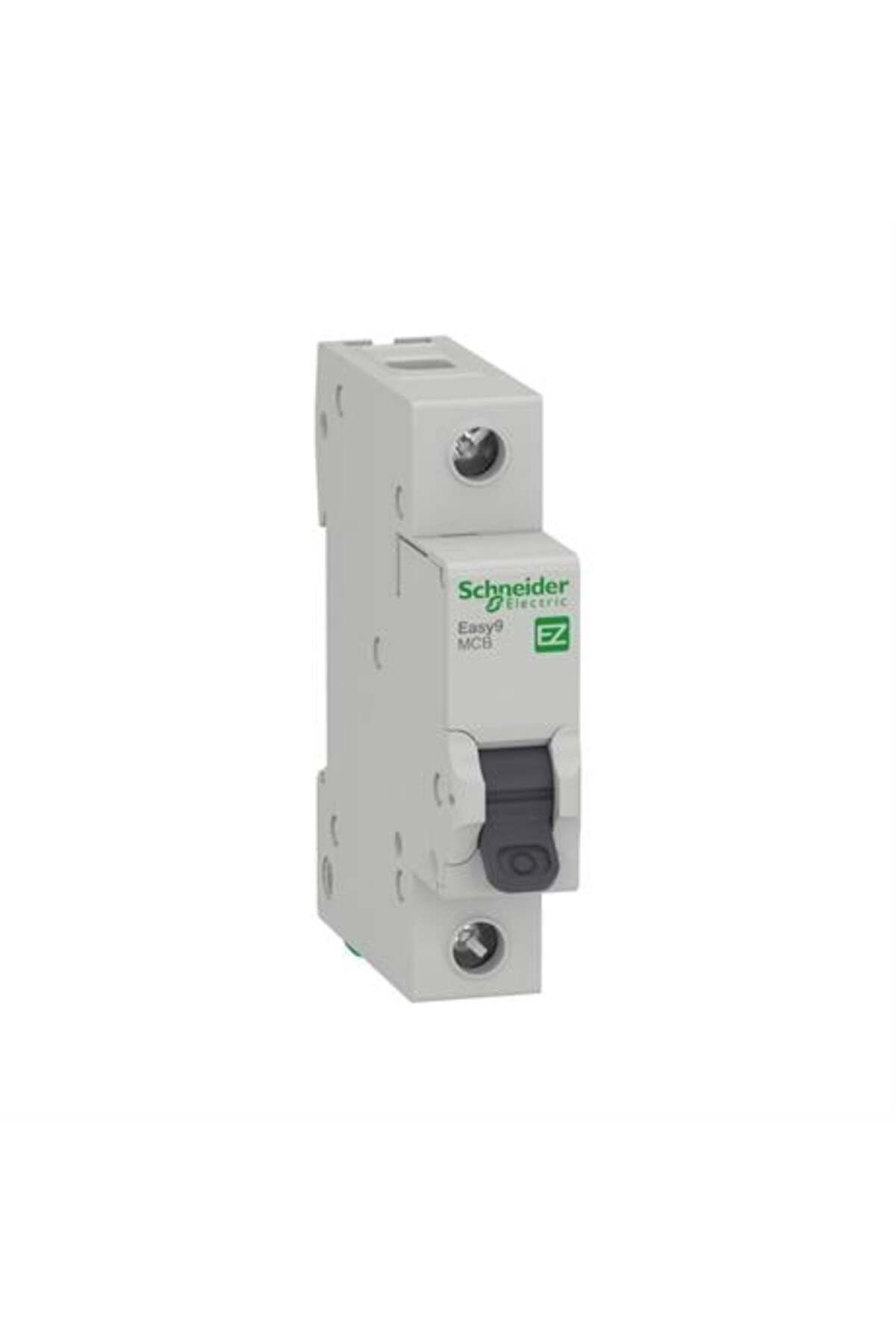

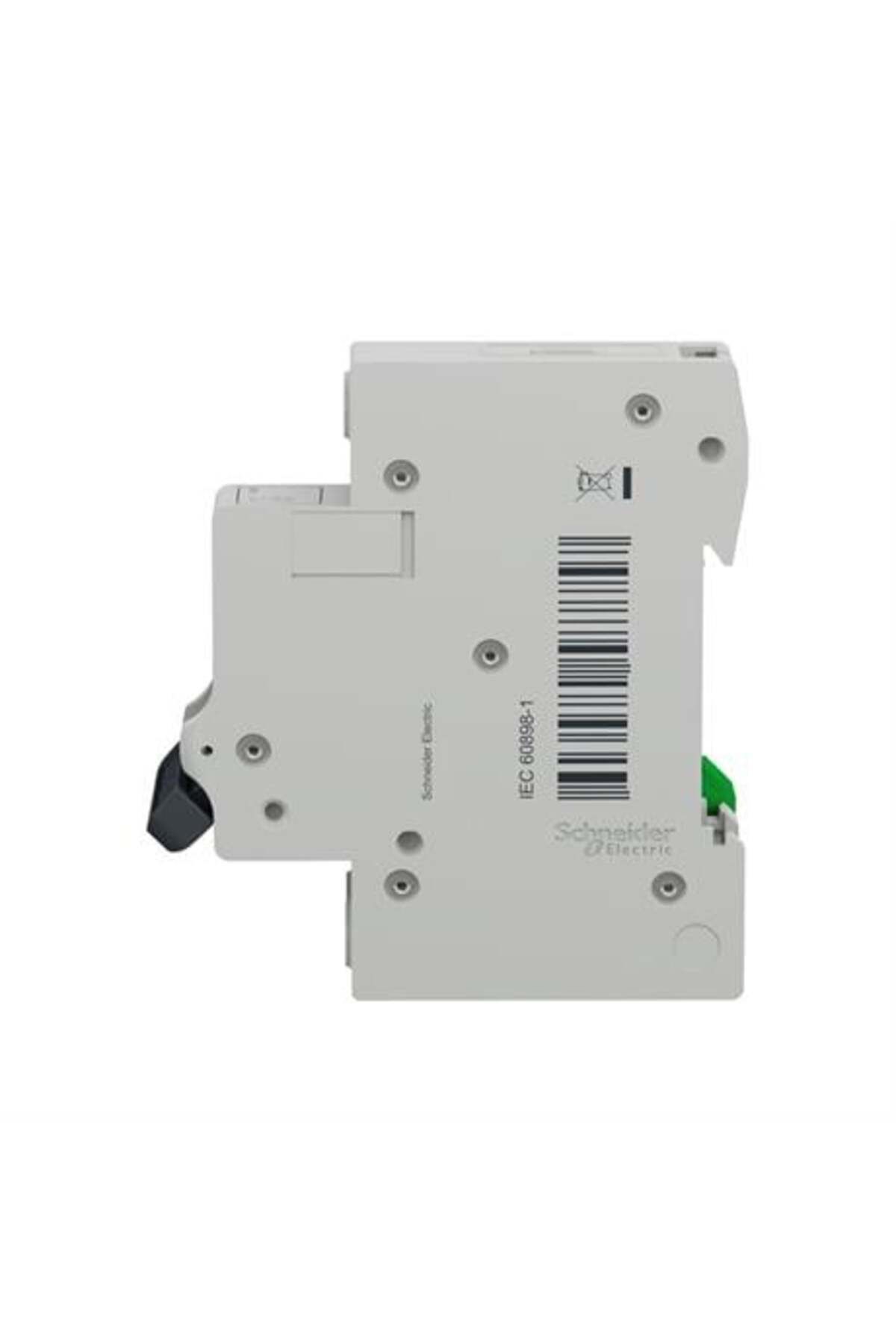

Schneider Easy9 1P 40A 6Ka C - Curve Fuse

Schneider electric easy9 mcb automatical fuses Schneider electric easy9 mcb series automatic fuses safely cut off the current connected to automatic fuses (mcb) in case of a short circuit or when your system is overloaded, thus your electrical systems are reliably protected against damage caused by high current.

Automatic fuses are devices that protect us from high current in our homes or workplaces, limiting excessive current.

You can find the most accurate automatic fuse for different infrastructures from our diverse range.

They are overcurrent protection devices that limit current.

"schneider easy9 mcb ez9f56140 40a fuse (1p, 3ka, c curve) technical specifications:- miniature circuit breaker,- 1p pole designation,- number of protected poles- 40a [in] rated current,- ac network type,- thermal magnetic trip unit technology,- ""c"" type incline code,- 50/60hz network frequency,- 230v ac 50/60hz [ue] rated operating voltage,- 5…10 x in magnetic trip limit,- 6ka [ue] rated service breaking capacity,- 500v ac 50/60hz [ui] rated insulation voltage,- 4kv [uimp] rated pulse withstanding voltage,- contact position indicator,- pass control type,- din rail fixed mounting type,- dimensions of 81mm (h) x 18mm (w) x 66.5mm (d),- 10." 000 cycles mechanical durability,- 4. 000 cycle electrical durability, - suitable for ip20 iec 60529 protection degree, - (-25 ° C ….

60 ° C) ambient temperature for operation, - (-40 ° C ….

85 ° C) ambient temperature for storage, - en/iec 60898-1 and 60947-2 standards, - under 18 months manufacturer's warranty.
